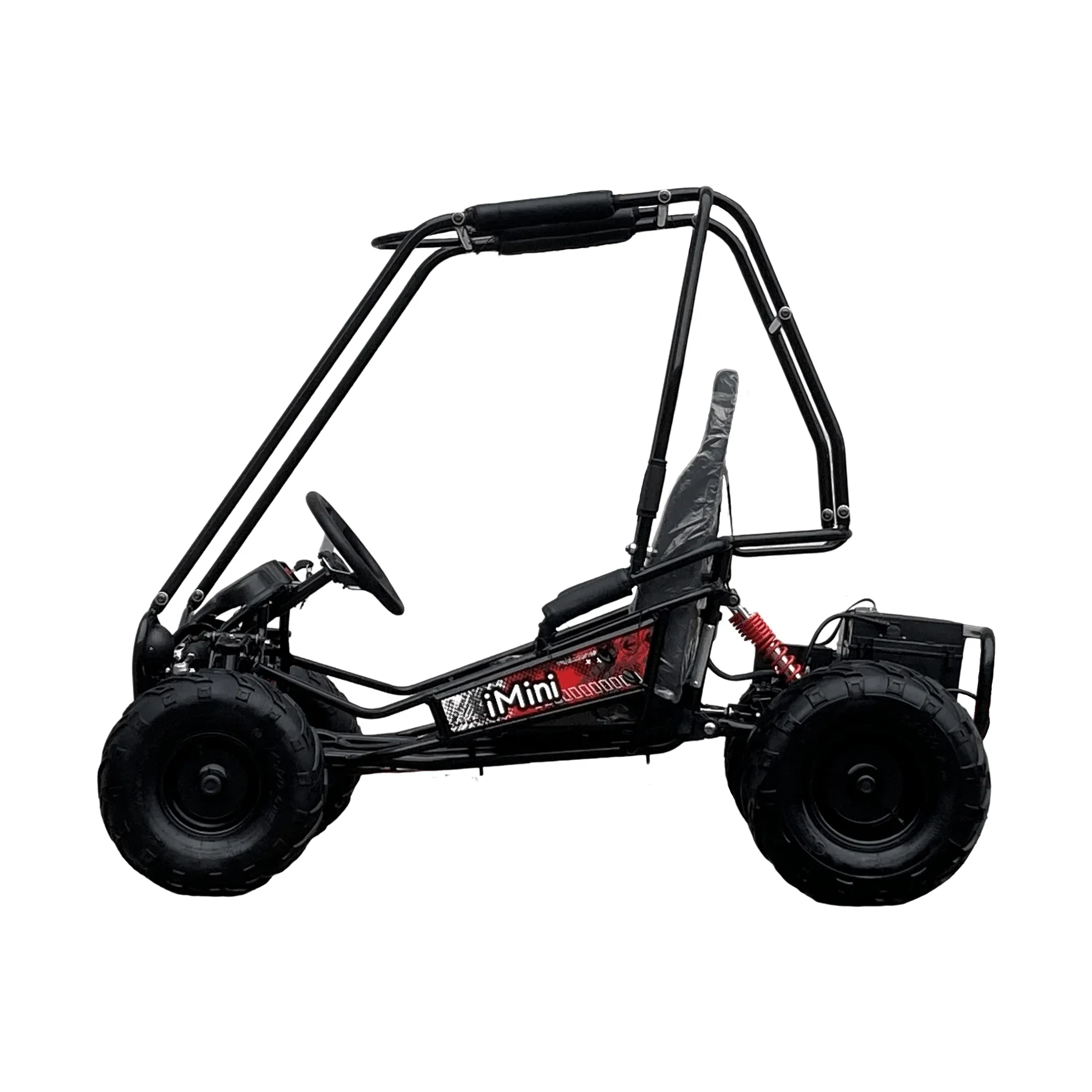

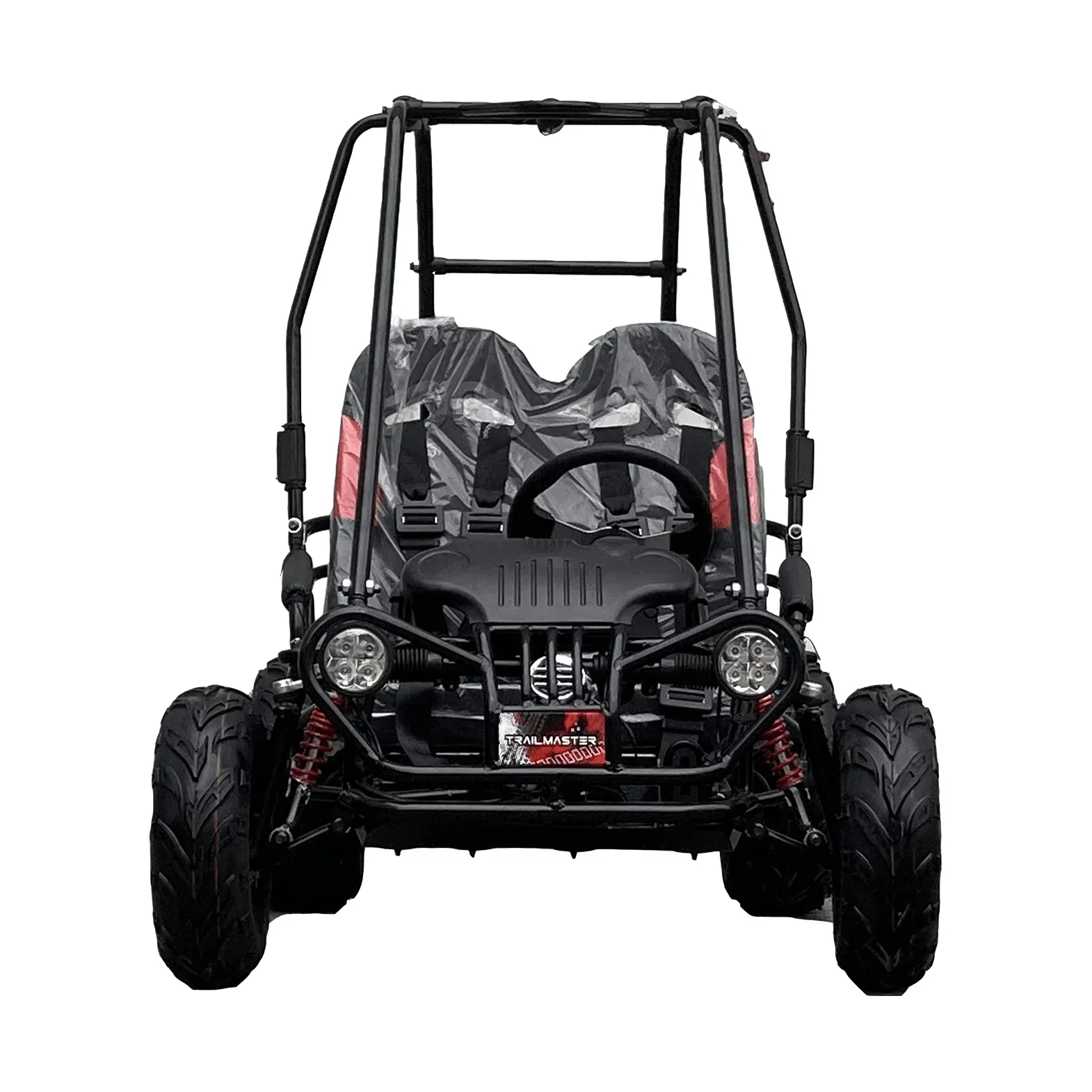

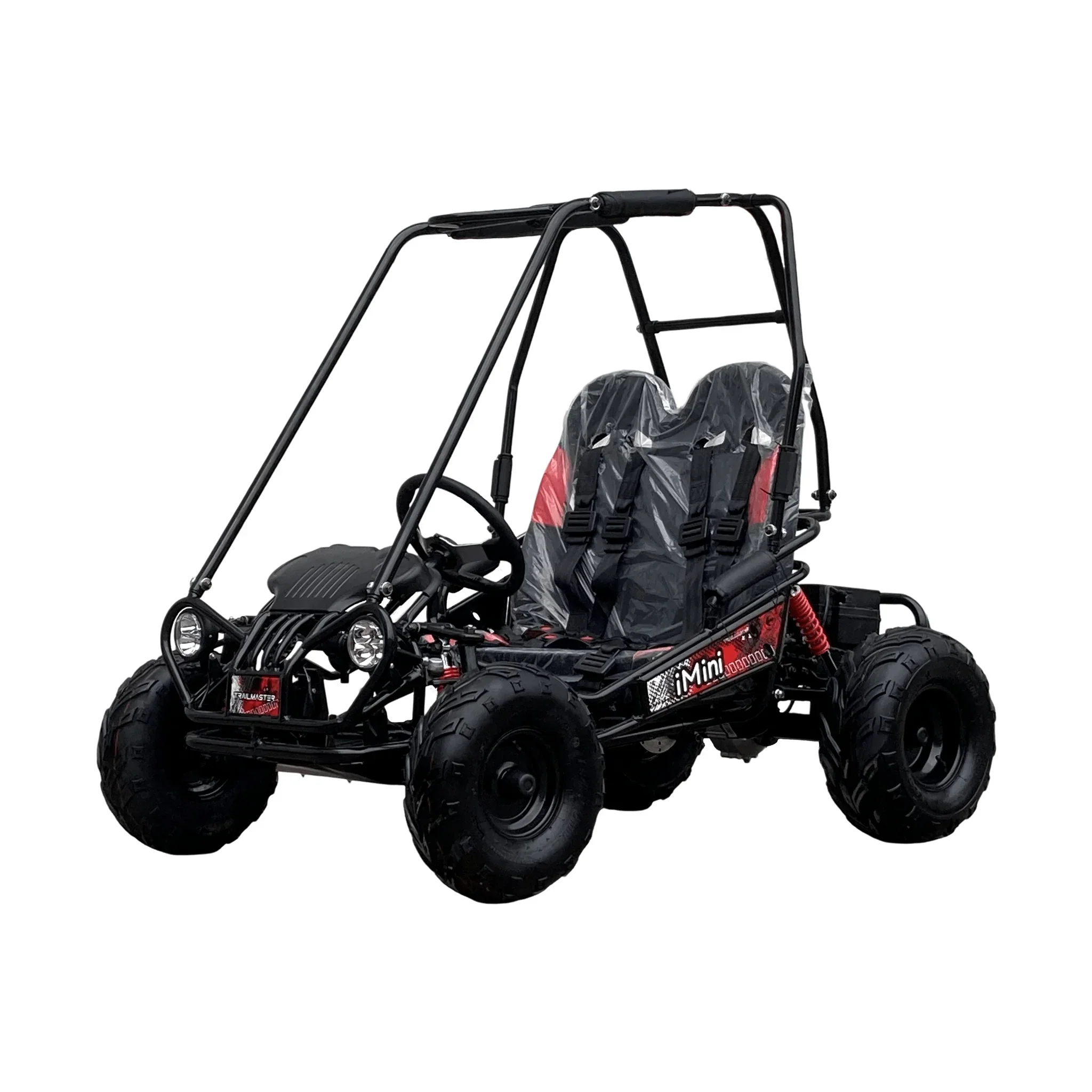

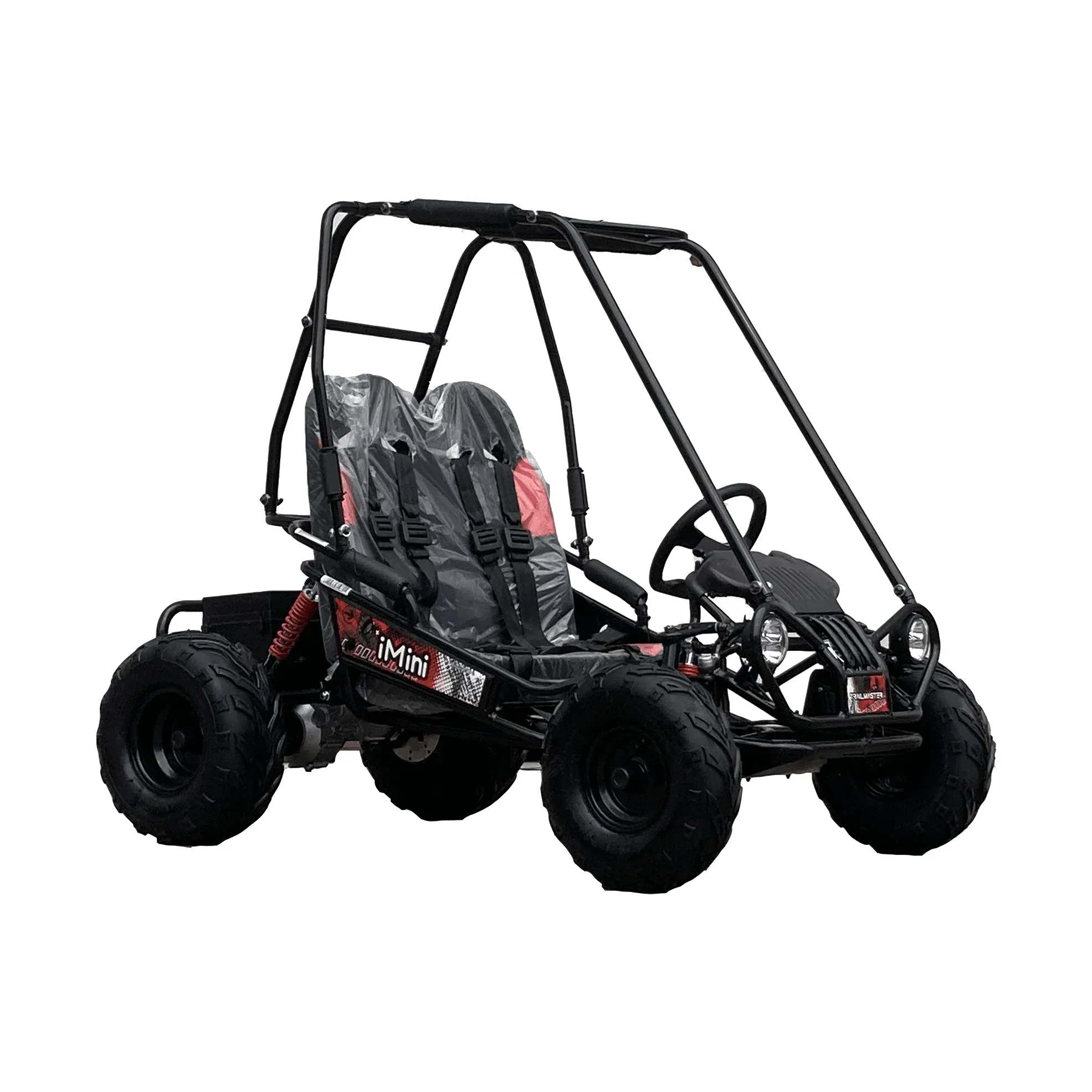

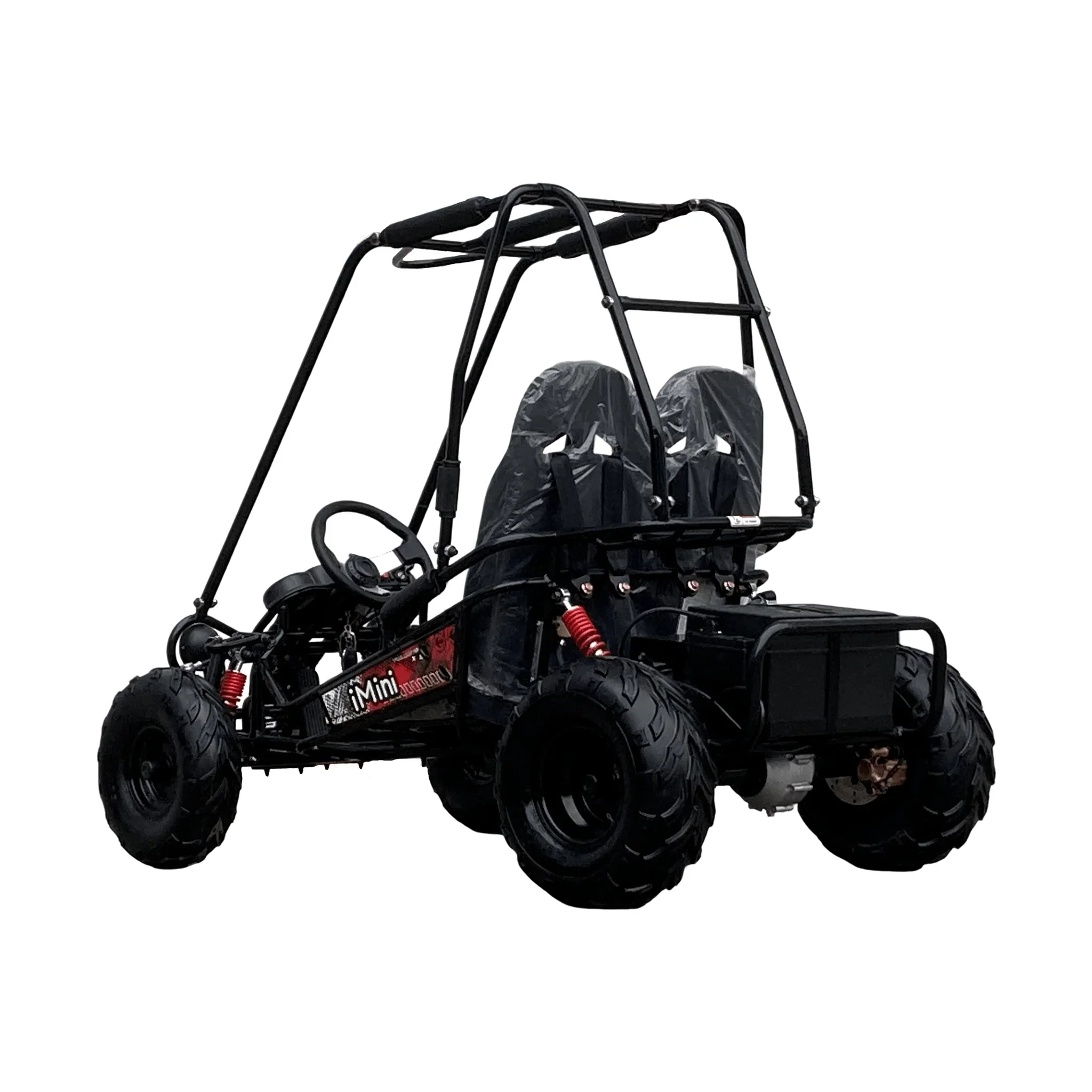

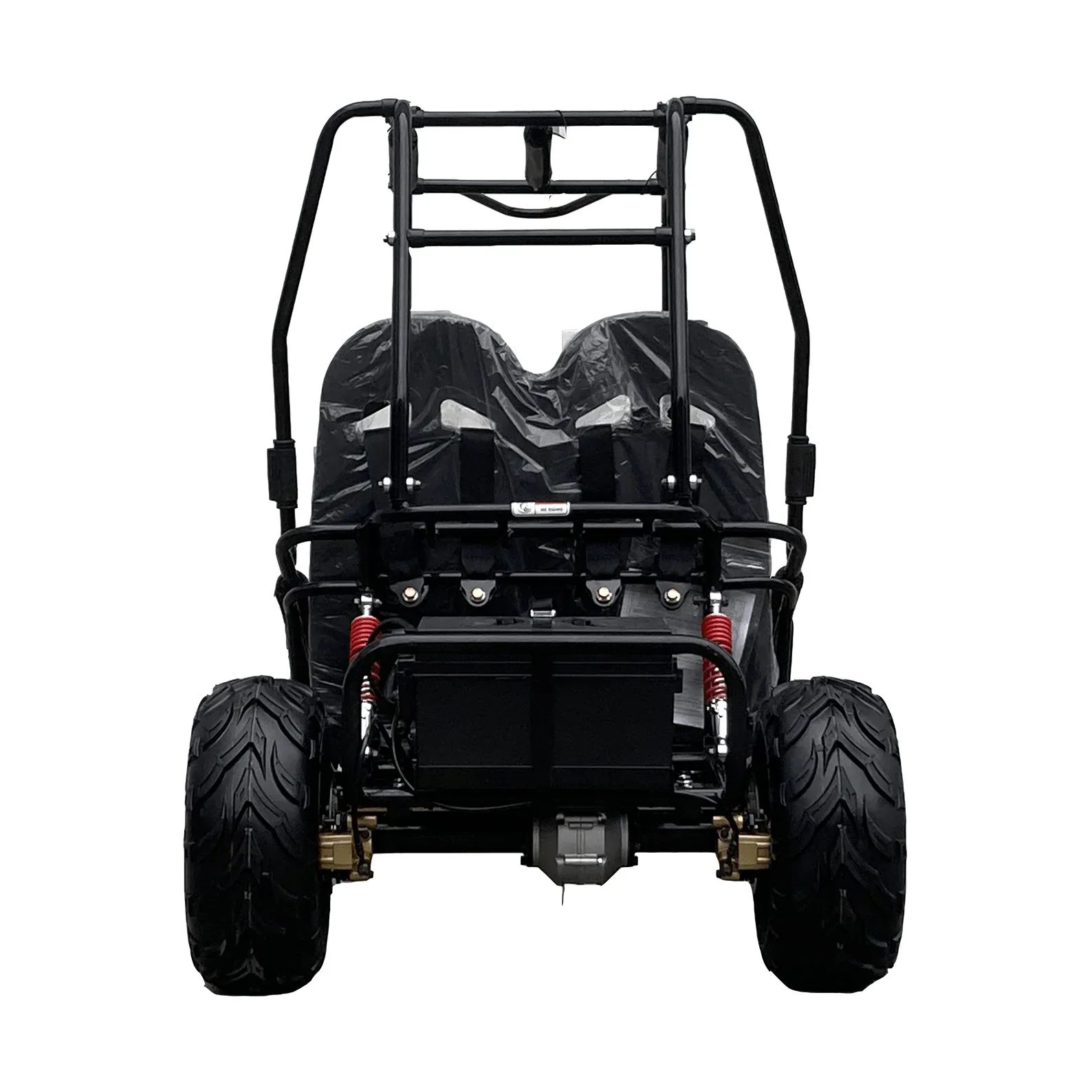

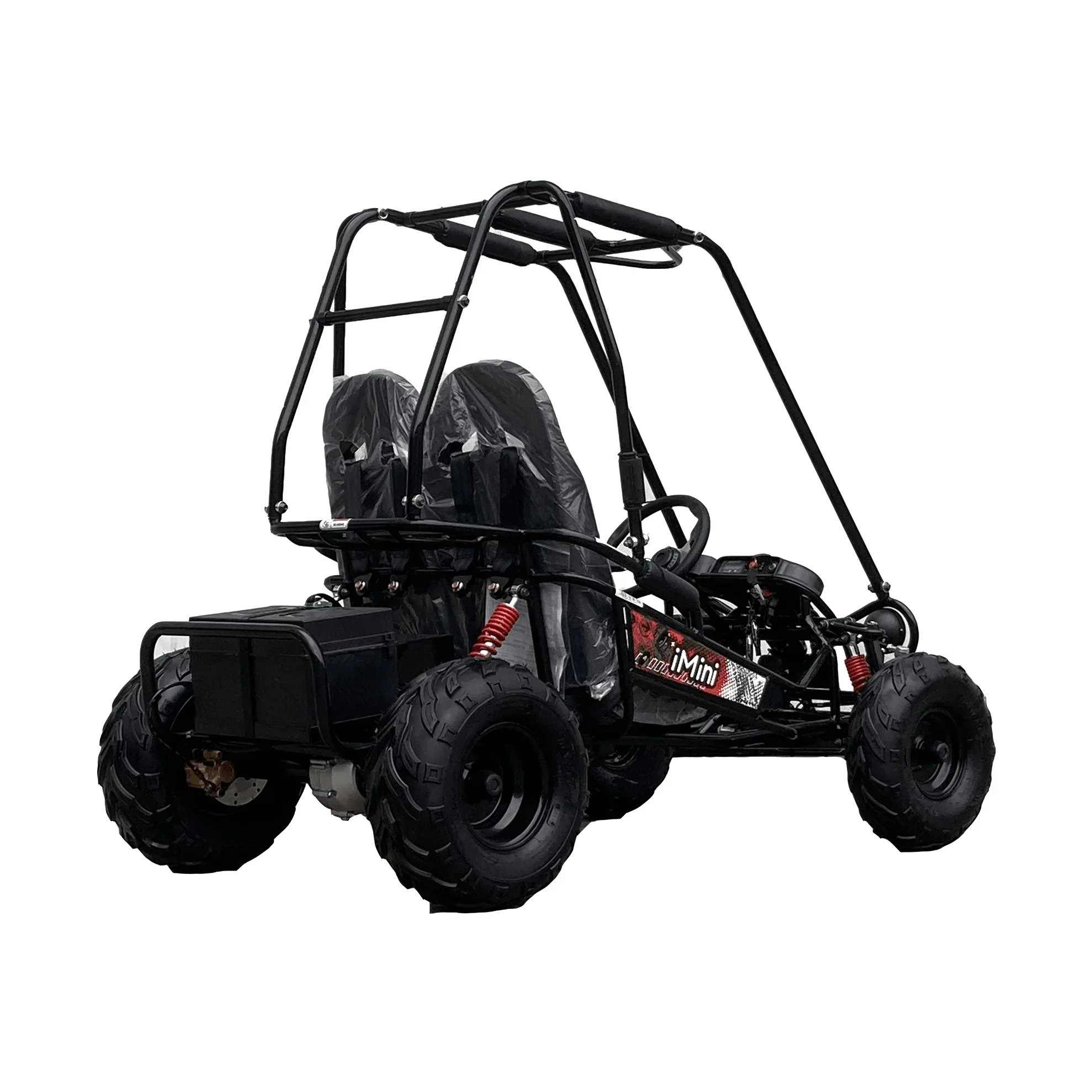

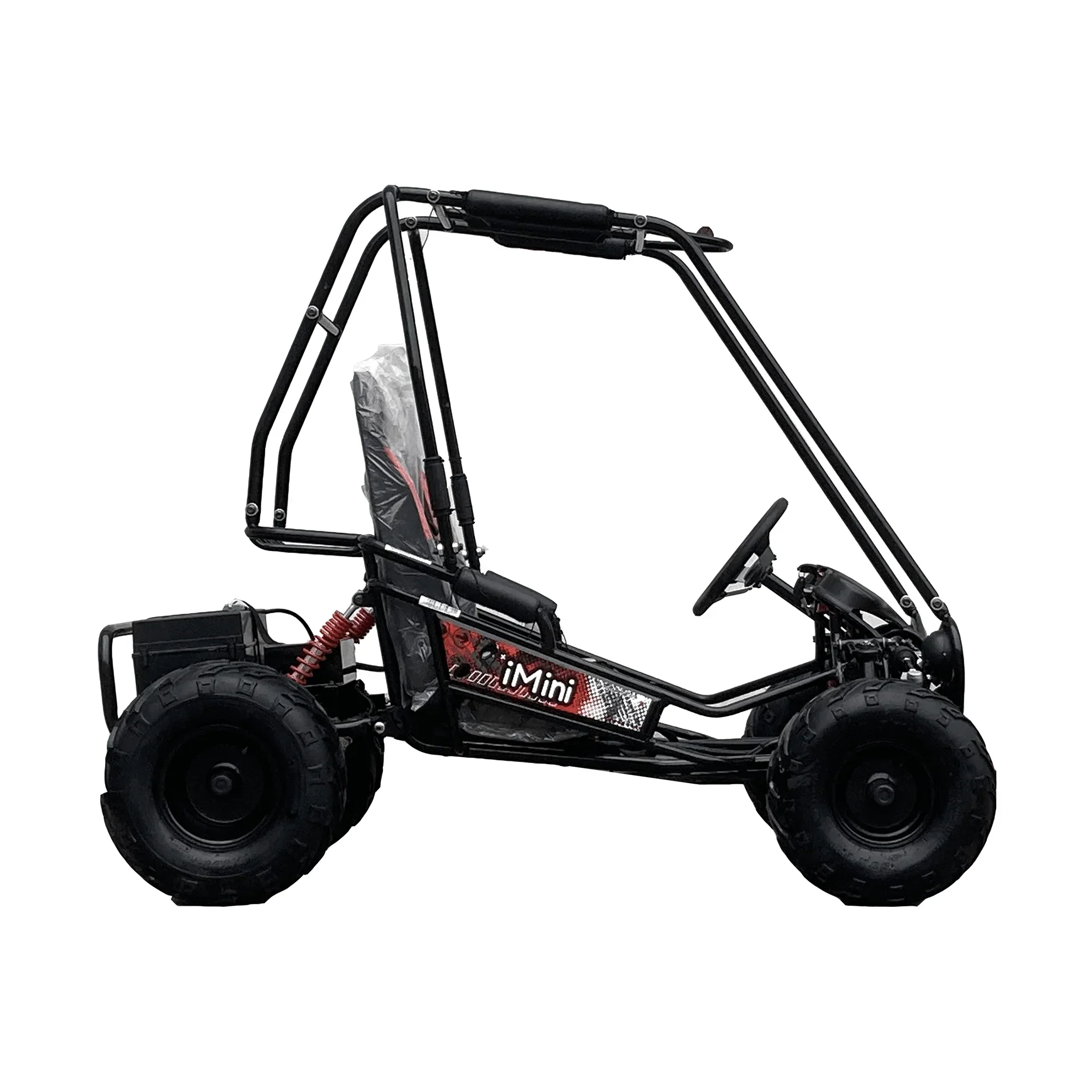

TrailMaster is excited to introduce the iMini, the electric version of our best-selling Mini XRX/R+. The iMini retains the same physical dimensions as the Mini XRX/R+ but is powered by a 48V 1.2KW electric motor and a 48V 20Ah battery. This fully automatic go-kart with reverse offers two forward driving modes: "H" mode with a top speed of 18 mph and "L" mode with a top speed of 12 mph. On a full charge, the iMini can travel up to 30 miles.

Designed with safety and performance in mind, the iMini features a digital monitor and requires the driver to hit the brake before engaging the throttle pedal for added safety. It boasts strong low-end torque, allowing it to climb slopes up to 15 degrees. The 5-point safety harness seatbelt, remote start/kill, and padding over the roll cage ensure a secure ride.

Additional features include an LED headlight, horn, and large tires (front: 145/70-6, rear: 16x8-7) for superior traction. The rack and pinion steering wheel and hydraulic disc brake provide precise control and quick stops. The adjustable sports seat, with a pedal-to-seat back range of 30 to 35 inches, accommodates children aged 4 to 12 years.

The iMini combines the beloved features of the Mini XRX/R+ with the eco-friendly benefits of electric power, offering a thrilling and safe ride for young adventurers.

Key features:

• Powered by 48V, 20A battery
• Digital monitor
• Fully automatic with reverse
• Driver has to hit brake in order to engage throttle pedal for safety
• Offers two driving mode: with “H” mode top speed only 18M/h; with “L” mode top speed 12M/h
• Strong low-end torque and able to climb 15 degrees slope
• Driving range up to 30miles
• 5-Point safety harness seatbelt
• Remote Start/Kill
• LED headlight
• Horn
• Big tires: F / R: 145/70-6 / 16x8-7
• Rack and pinion steering wheel
• Hydraulic disc brake
• Padding over roll cage
• Adjustable sports seat: pedal to seat back adjustable from 30 to 35 inches
• Age group: 4 to 12 yrs

SPECIFICATIONS

Battery Information
Battery:	Lead Acid Battery
Nominal Voltage:	48V
Rated Capacity:	20Ah
Charging Temp Range:	32 °F to 104 °F
Storage Temp Range:	5 °F to 104 °F
Charging Time:	6-8h
Range:	30 miles max depending on weight, speed and driving conditions.
Battery model:	6-DZF-12
Battery Warranty:	6 months Limited
Electric Motor Information
Service Voltage:	48V
Rated Power:	1.2KW
Rated Speed:	3800RPM
Rated Current:	14A
Max Torque:	>=8Nm
Current limit:	30A
General Information
Suspension, F / R:	Double A-arm / Double Oil Damped Shock
Brakes:	Rear Hydraulic Disc brake
Tires, F / R:	145/70-6 / 16x8-7
Gross Weight:	273 lbs
Net Weight:	225 lbs
Max Load:	330 lbs
Driving Mode:	R-N-D
Max speed:	12mph on “L” mode; 18mph on “H” mode
Climbing ability:	15 degrees
Dimension Information
Wheelbase:	42 inches
OA L x W x H:	67x44x51.2 inches
Height to Seat:	10.2 inches
Min Ground Clearance	2.8 inches
Pedal to seat back:	30 to 35 inches
Crate size:	60X30X21 inches
